Location Controls
What are Location Controls?
Location controls define where a feature must be located relative to a datum reference frame. They control the position of features like holes, pins, slots, and bosses.The primary location control is:
| Symbol | Name | Controls |
|---|---|---|
| ⊕ | Position | Location of feature's axis or center plane |
Note: Concentricity and Symmetry were deprecated in ASME Y14.5-2018 in favor of Position with appropriate modifiers.
True Position
True position is the theoretically exact location of a feature as defined by basic dimensions from datums.Basic dimensions are shown in boxes and have no tolerance:
┌────┐ ┌────┐
│ 50 │ │ 30 │
└────┘ └────┘
│ │
▼ ▼
════════╬════════════════ Datum B
║
║ ⊙ ← Hole's true position
║
════════╬════════════════ Datum APosition Tolerance
The position tolerance defines a cylindrical (or planar) zone within which the feature's axis must lie:
3,000+ engineers placed at Mahindra, Bosch, TATA ELXSI
Including Continental, Capgemini, Ola Electric & 500+ more companies
FCF: ┌───┬────────────┬────────┬────────┬────────┐
│ ⊕ │ ⌀ 0.25 (M) │ A │ B │ C │
└───┴────────────┴────────┴────────┴────────┘The Cylindrical Tolerance Zone

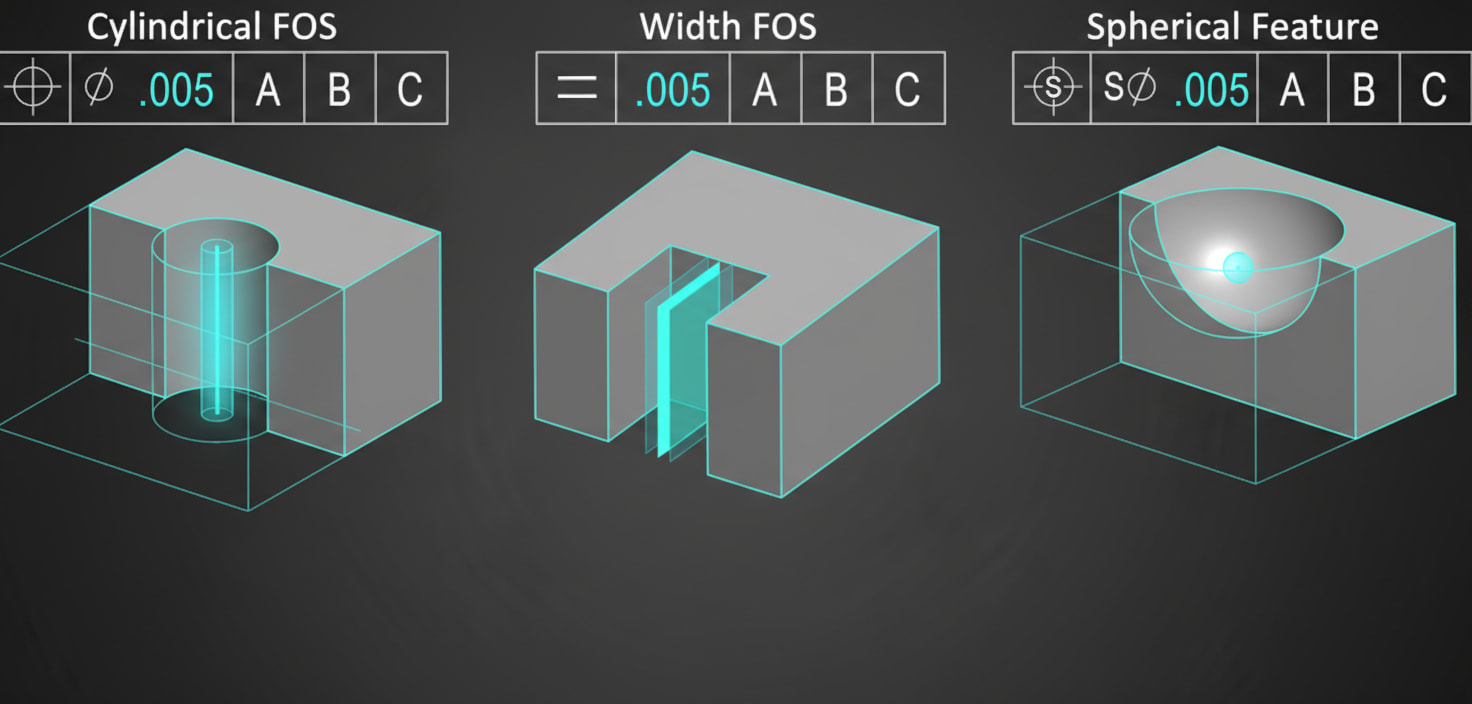

For holes and pins, position creates a cylindrical zone:
╭─────╮
True │ ⌀ │ ⌀ 0.25 tolerance zone
Position ──► │ ○ │
╰─────╯
│
Actual axis must lie within this cylinderCalculating Position Deviation
The position deviation formula:
Position Deviation = 2 × √(ΔX² + ΔY²)Where:
Ranjith switched from IT to core automotive industry
Harshal
Fiat Chrysler
Abhishek
TATA ELXSI
Srinithin
Xitadel
Ranjith
Core Automotive
Gaurav
Automotive Company
Bino
Design Firm
Aseem
EV Company
Puneet
Automotive Company
Vishal
EV Startup
More Success Stories
His inspiring career transition story with video
- ΔX = deviation from true position in X
- ΔY = deviation from true position in Y
- Hole center is 0.08mm off in X
- Hole center is 0.06mm off in Y
- Position deviation = 2 × √(0.08² + 0.06²) = 2 × 0.10 = 0.20mm
If tolerance is ⌀ 0.25, the part passes (0.20 < 0.25).

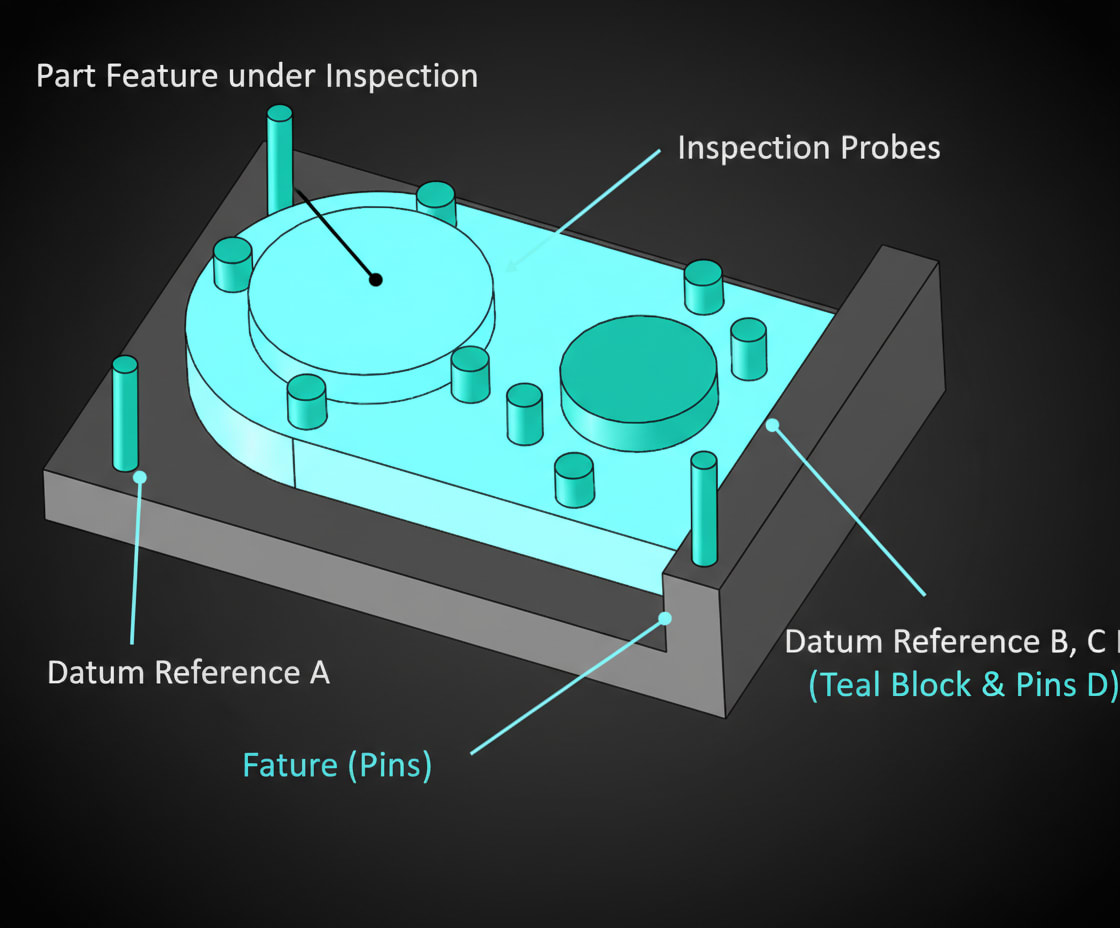

Bonus Tolerance (MMC/LMC)
When (M) is specified, you get bonus tolerance as the feature departs from MMC:
For a Hole (Internal Feature)
- MMC = Smallest hole (most material)
- LMC = Largest hole (least material)
Example:
Hole size: ⌀ 10.0 ± 0.2
MMC = 9.8mm (smallest)
LMC = 10.2mm (largest)
Position: ⌀ 0.25 (M)
If actual hole = 10.0mm:
Bonus = 10.0 - 9.8 = 0.2mm
Total position tolerance = 0.25 + 0.2 = 0.45mmBonus Tolerance Table
| Actual Hole Size | Bonus | Total Position Tolerance |
|---|---|---|
| 9.8 (MMC) | 0 | 0.25 |
| 9.9 | 0.1 | 0.35 |
| 10.0 | 0.2 | 0.45 |
| 10.1 | 0.3 | 0.55 |
| 10.2 (LMC) | 0.4 | 0.65 |
Position for Hole Patterns
Position is commonly used for bolt hole patterns:
Harshal got placed at Fiat Chrysler as Design Engineer
Watch his video testimonial on how the program helped him
○───────○
│ │
│ ⊕ │ Basic dimensions locate pattern
│ │
○───────○
FCF: ┌───┬────────────┬────────┬────────┐
│ ⊕ │ ⌀ 0.50 (M) │ A │ B │
└───┴────────────┴────────┴────────┘All holes in the pattern must meet the position tolerance.
Composite Position Tolerance
For patterns requiring both pattern location AND hole-to-hole relationship:
┌───┬────────────┬────────┬────────┬────────┐
│ ⊕ │ ⌀ 0.50 (M) │ A │ B │ C │ ← Pattern to datums
├───┼────────────┼────────┴────────┴────────┤
│ ⊕ │ ⌀ 0.15 (M) │ │ ← Hole-to-hole
└───┴────────────┴──────────────────────────┘- Upper segment: Pattern location relative to datums (0.50)
- Lower segment: Feature-to-feature relationship (0.15)
Position vs. Concentricity
| Characteristic | Position | Concentricity (Deprecated) |
|---|---|---|
| What it controls | Axis location | Mass center location |
| Zone shape | Cylindrical | Cylindrical |
| Modifiers | Allows MMC/LMC | RFS only |
| Inspection | Simple | Complex |
Key Takeaways
- Position controls feature location relative to datum reference frame
- Basic dimensions define true position (shown in boxes)
- Position tolerance creates a cylindrical zone for axes
- MMC modifier provides bonus tolerance as feature departs from MMC
- Composite position controls both pattern location and feature-to-feature
- Position replaces the deprecated Concentricity and Symmetry
---
Next Lesson: Profile Controls - controlling complex shapes and surfaces.
